CY3000 Water steam Spray sterilization autoclave size and utility consumption

Common sterilization autoclave specifications, retort specifications

Common autoclave temperature specifications

  1. operate temperature: form  70 ~ 130℃ ( 160 ~ 265 °F)
  2. Cooling temperature: outdoor plus ___ 15 ℃ ( 27°F)
  3. temperature distribution :.___ ± 0.5 °C ( ± 1.0 °F)
  4. Heating speed adjustable 3 ~ 15 ℃/min (6 ~ 27 °F/min)
  5. Cooling speed adjustable 3 ~ 15 ℃/min (6 ~ 27 °F/min)
  6. MIG thermometer :  80 ~ 130 ℃ (175 ~ 265 °F), indicate 0.5 ℃ (1 °F)
  7. Room temperature : above 4 ℃ ( 40 °F)

Common autoclave pressure specifications

  1. Design pressure: ________ 7 kg/cm2 (100 psi)
  2. Inspection pressure: ______4 kg/cm2 (57 psi)
  3. Operating pressure: ______4 kg/cm2 (57 psi)
  4. Over pressure: __________4 kg/cm2 (57 psi)

Common autoclave material specifications

  1. Stainless steel SUS 304
  2. Stainless steel SUS 316

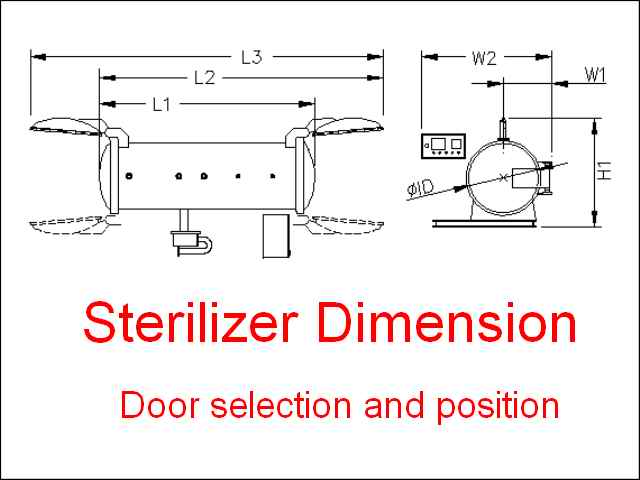

size

 Door selection

  1. 1 door ( single door )
  2. 2 door ( twin door )
  3. right , left open
  4. vertical open

 Loading selection

  1. Manual loading, unloading
  2. Automatically loading, unloading

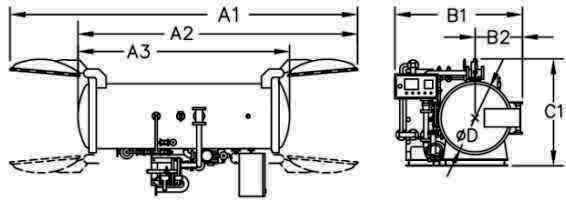

CY-3000H 106

unit: mm
  Retort size: ØD: 1060 // B1: 2100 // B2: 770// C1 : 1950
Cages
2
3
4
A1
2450
3450
4450
A2
3480
4480
5480
A3
4490
5490
6490

Max working volume

unit: Liter
 Cage ( tray ) size LxWxH= 980x700x600 = 410 liters
Liters
820
1230
1640

Utility consumption & supply

unit: metric
  Steam // 75℃ Hot filling --> Hot // 25℃ Cold filling --> Cold
S- Hot
S- Cold
Supply
Air
Supply
Water
Supply
Power

CY-3000H 130

unit: mm
  Retort size: ØD: 1300 // B1: 2560 // B2: 860// C1 : 2200
Cages
2
3
4
5
6
A1
2600
3600
4600
5600
6600
A2
3960
4960
5960
6960
7960
A3
5330
6330
7330
8330
9330

Max working volume

unit: Liter
 Cage ( tray ) size LxWxH= 980x850x770 = 640 liters
Liters
1280
1920
2560
3200
3840

Utility consumption & supply

unit: metric
  Steam // 75℃ Hot filling --> Hot // 25℃ Cold filling --> Cold
S- Hot
S- Cold
Supply
Air
Supply
Water
Supply
Power
Go Top
size

 Door selection

  1. 1 door ( single door )
  2. 2 door ( twin door )
  3. right , left open
  4. vertical open

 Loading selection

  1. Manual loading, unloading
  2. Automatically loading, unloading

CY-3000H 140

unit: mm
  Retort size: ØD: 1400 // B1: 2530 // B2: 930// C1 : 2330
Cages
2
3
4
5
6
A1
2800
3800
4800
5800
6800
A2
3990
4990
5990
6990
7990
A3
5125
6125
7125
8125
9125

Max working volume

unit: Liter
 Cage ( tray ) size LxWxH= 980x920x855 = 770 liters
Liters
1540
2310
3080
3850
4620

Utility consumption & supply

unit: metric
  Steam // 75℃ Hot filling --> Hot // 25℃ Cold filling --> Cold
S- Hot
S- Cold
Supply
Air
Supply
Water
Supply
Power

CY-3000H 150

unit: mm
  Retort size: ØD: 1500 // B1: 2650 // B2: 990 // C1 : 2430
Cages
2
3
4
5
6
A1
2820
3820
4820
5820
6820
A2
4155
5155
6155
7155
8155
A3
5440
6440
7440
8440
9440

Max working volume

unit: Liter
 Cage ( tray ) size LxWxH= 980x980x950 = 910 liters
Liters
1820
2730
3640
4550
5460

Utility consumption & supply

unit: metric
  Steam // 75℃ Hot filling --> Hot // 25℃ Cold filling --> Cold
S- Hot
S- Cold
Supply
Air
Supply
Water
Supply
Power
Go Top
size

 Door selection

  1. 1 door ( single door )
  2. 2 door ( twin door )
  3. right , left open
  4. vertical open

 Loading selection

  1. Manual loading, unloading
  2. Automatically loading, unloading

CY-3000H 170

unit: mm
  Retort size: ØD: 1700 // B1: 3175 // B2: 1125// C1 : 2450
Cages
2
3
4
5
6
10
A1
2875
3875
4875
5875
6875
10875
A2
7390
5390
6390
7390
8390
12390
A3
5850
6850
7850
8850
9850
13850

Max working volume

unit: Liter
 Cage ( tray ) size LxWxH= 980x1100x1010 = 1090 liters
Liters
2180
3270
4360
5450
6540
10900

Utility consumption & supply

unit: metric
  Steam // 75℃ Hot filling --> Hot // 25℃ Cold filling --> Cold
S- Hot
S- Cold
Supply
Air
Supply
Water
Supply
Power

CY-3000H

unit: mm
  Retort size: ØD : // B1: // B2: // C1:
cages
2
3
4
5
6
10
A1
A2
A3

Max working volume

unit: Liter
 Cage ( tray ) size LxWxH= ***x***x*** = *** liters
Liters

Utility consumption & supply

unit: metric
  Steam // 75℃ Hot filling --> Hot // 25℃ Cold filling --> Cold
S- Hot
S- Cold
Supply
Air
Supply
Water
Supply
Power

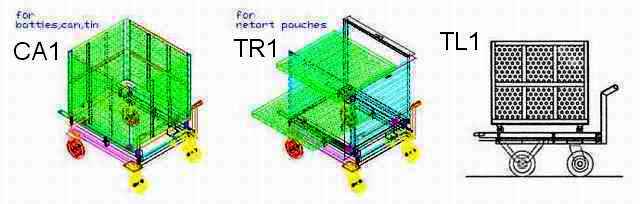

cage tray

Trolley : cage : tray

  1. Cage CA1 : for bottles, canned
  2. Tray TR1 : for flexible pouch, retort pouch, small bottles, small canned
  3. Trolley TL1 : manual or automatically

   Buyer duty : utility source supply standard

  1. Steam: main pipe pressure should be over 6 kg/cm2 (85 psi), and with a reducer valve before the interface flange
  2. Water : at least supply the soft water, clean water is better
  3. Air : compressor air supply should be above 5 kg/cm2 (72 psi), and with a service tank
  4. Power: 3Ø 4W 220/380V ; 50/60 Hz ; ±10%
